Biaxial Geogrid
Product Description

Industry-specific attributes


  Warranty

  5 Year

  After-sale Service

  Online technical support

  Project Solution Capability

  graphic design, total solution for projects, Others

  Application

  Road construction

  Design Style

  Industrial


Other attributes


  Place of Ongin  China
  Type  Geogrids
  Brand Name  Dingrun
  Product Name  PP Biaxial Geogrd
  Material  Plastic PP
  Color  Black
  Tensile strength  25Kn/m--300Kn/m
  Width  1-6m
  MESH SIZE  12.7*12.7mm. 25.4*25.4mm
  Length  50-100m
  Keyword  Biaxial Geogrid
  Application  Soft Soil Reinforcement


Specification


  Specifications /item

  TGSG 15-15  TGSG 20-20  TGSG 30-30  TGSG 40-40  TGSG 45-45
  Roll width(m)  4(+0.20)

  Each longitudinal tensile yield

  strength (KN / m)

  15  20  30  40  45

  Each horzontal tensile yield

  strength(KN / m)

  15  20  30  40  45
  Vertical yield elongation(%)≤  13
  Horzontal yield elongation(%)≤  16

  Longitudinal elongation of 2% when

  the stretching force(KN / m)≥

  5  8  11  13  16

  Horizontal elongation rate of 2

  percent of the stretching force

  (KN/m)≥

  7  10  13  15  20
  Vertical elongation of 5% when the         stretching force( KN / m )≥  8  10  15  16  25

  Horizontal elongation of 5% when

  the  stretching force( KN / m )≥

  10  13  15  20  22
  Width(m)  1-6
  Note  Special specific ations can be customized according to the contract

Products Application:

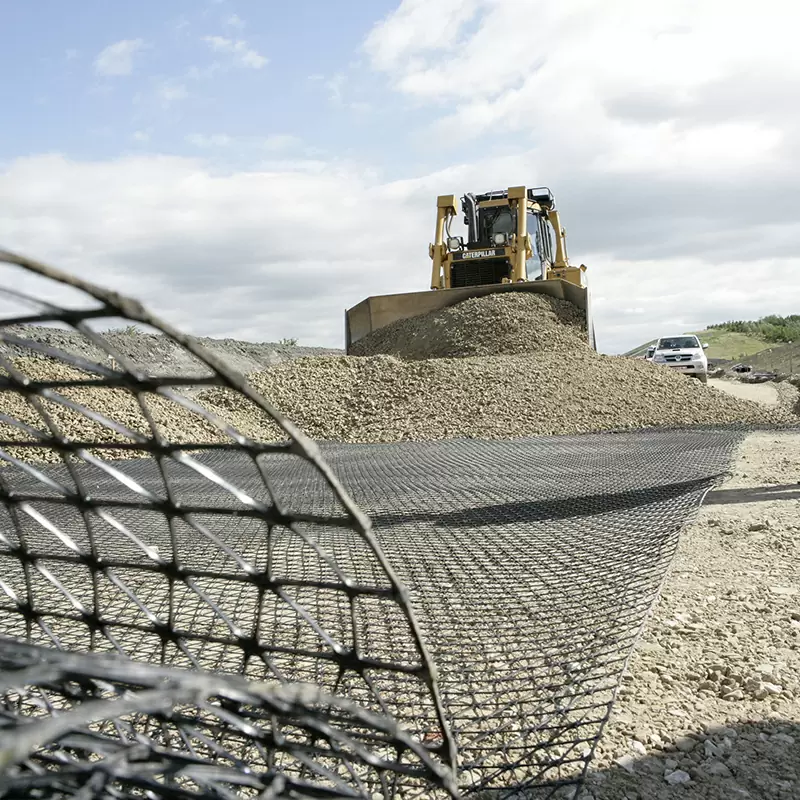

1. Reinforcement and Stabilisation of earth fencing walls, railways, highways and water conservation projects;

2. Reinforcement of road foundations;

3. Retaining walls;

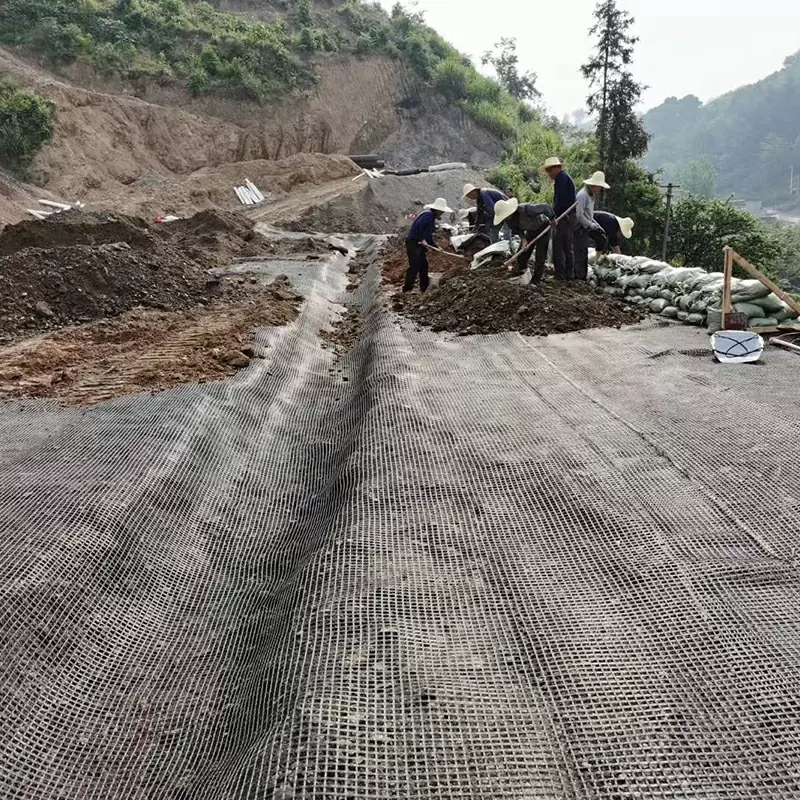

4. Road slope repair and reinforcement;

5. Be used in noise barriers construction.

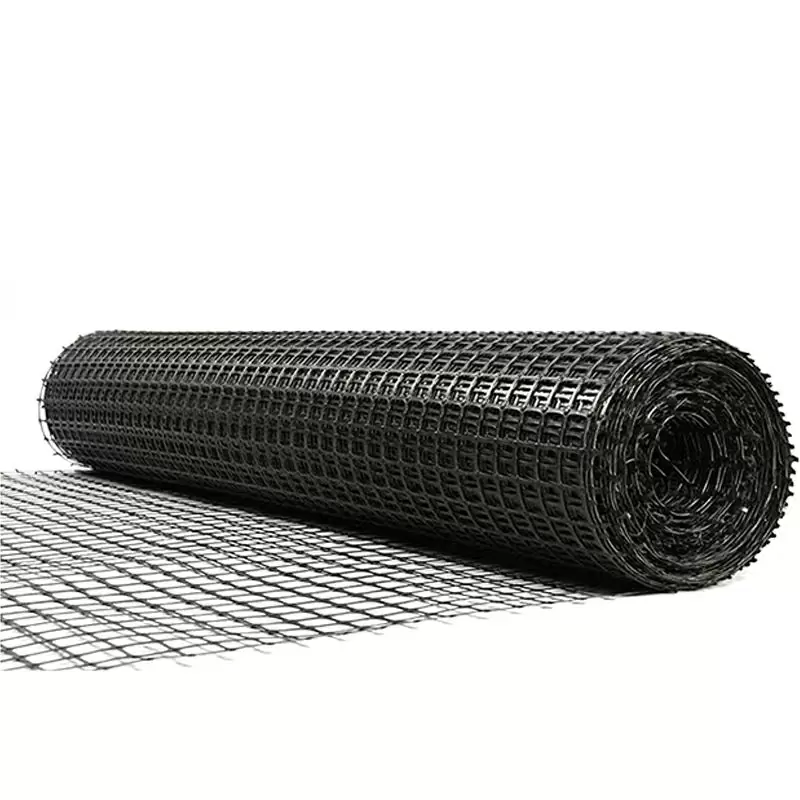

PP Biaxial Geogrid is a Polypropylene sheet , in the form of a square , which acts as a reinforcement for soft ground layer .

The obvious characteristic of PP Biaxial Geogrid is its perfect mechanical behaviour under temporary high pressure condition.


Product introduction

PP biaxial geogrid is manufactured from PP, it is produced through the process of extruding, punching, heating,

longitudinal and transverse stretching.

Product features

1. High tensile strength in warp and weft directions.

2. Effective bearing capacity in soft soil foundation and make it an integral interlocking system.

Product application

PP biaxial geogrid is mainly applied in strengthening soft ground of railway, highway, slope protecting

projects,airfields, and foundation reinforcement of large area permanent bearing engineering fields. lt can

increase stability and loading capacity of fundus, prolong the project life.










FAQ

Q1. Can you do OEM?

A1. Yes.of course.We can produce the products as per your request.

If you can offer samples to us,it will be more convenient.



Q2. If I want to order a small quantity goods,can you do it?

A2. If the product you need we have stock available,that would be great,you can choose the instock goods.

but if not, don’t worry, we can take your order with our other clients’ order to be produced together.But it needs to wait some time .



Q3: Can you arrange the shipment for us?

A3: Yes, Our freight forwarders are through the company tender, signed long-term agreement, Price Service is the best. we have designated sea-freight and railway freight Forwarders with decades of experiences and we can get the best price with earliest vessel and professional services.



Q4. How will you follow my order?

A4. When the goods are started to produce,we will take photos for the goods and send it to you.

If you find any production deficiencies,please contact us to correct it.

We will keep in touch with you in the whole production by e-mail or instant messaging, like Skype/Viber/WhatsApp, you can get the

latest news about your order.

After the goods are finish,we will take photos for the goods and packing to you before shipping.



Q5. What is your exporting countries?

A5. We have good sales performance and win good international reputation in more than 30 Countries and

regions,such as Japan, America, Australia,Russia, Canada,Middle East and so on.

Especially in the Middle East and Australia market.
