Hard Black Blind Ditch Water Drainage Plastic Pipe Hard Plastic Pipe Blind Ditch

Phone : +86 19353119093

Email : inquiry@drgeotextile.com

Whatsapp : +86 19353119093

Product Description

Warranty	5 Year
After-sale Service	Online technical support
Project Solution Capability	Others
Application	Drainage board
Design Style	Industrial

Specifications for Blind Ditch
Item	Rectangular Section				Circular Section
Item	MF 0730	MF 1435	MF 1435	MF 1235	MY 60	MY 80	MY 100	MY 150	MY 200
Boundary dimension (wide×thickness) mm	70×30	140×35	150×50	120×35	Φ60	Φ80	Φ100	Φ150	Φ200
The hollow size (wide×thickness) mm	40×10	40×10×2	40×20×2	40×20×2	Φ25	Φ45	Φ55	Φ80	Φ120
Weight (g/m) ≧	350	650	750	600	400	750	1000	1800	2900
Voidage(%)	82	82	82	82	82	82	84	84	85
Compresssive strength Flatness ratio 5%≧	60	80	50	70	80	85	80	40	50
Compresssive strength Flatness ratio 10%≧	110	120	70	110	160	170	140	75	70
Compresssive strength Flatness ratio 15%≧	150	160	125	130	200	220	180	100	90
Compresssive strength Flatness ratio 20%≧	190	190	160	180	250	280	220	125	120

Product Application

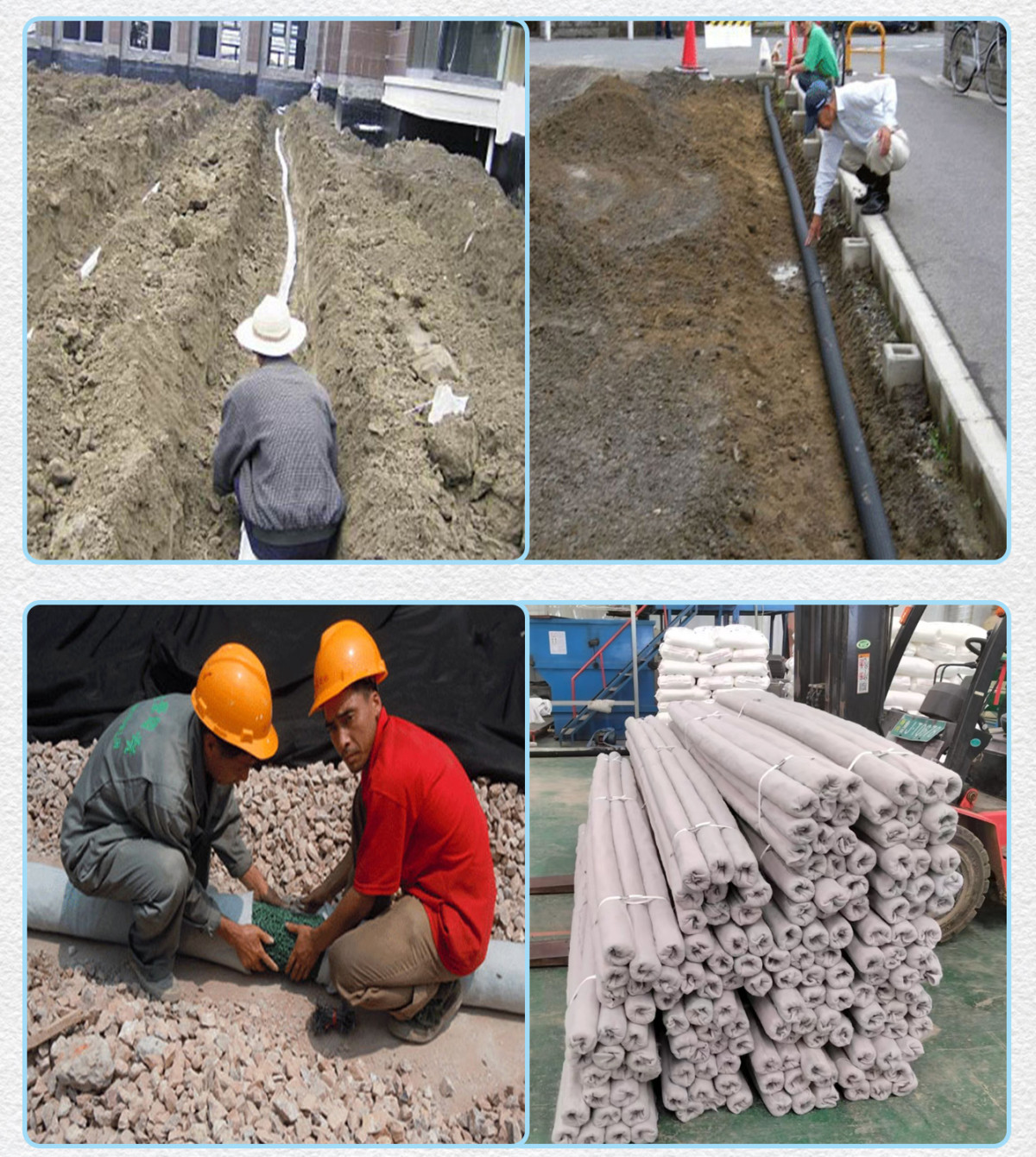

1) Drainage of Highway and Railway Subgrade and Shoulder.

2) Drainage of tunnels and underground passages.

3) Drainage of slopes such as hillsides andlevees, etc.

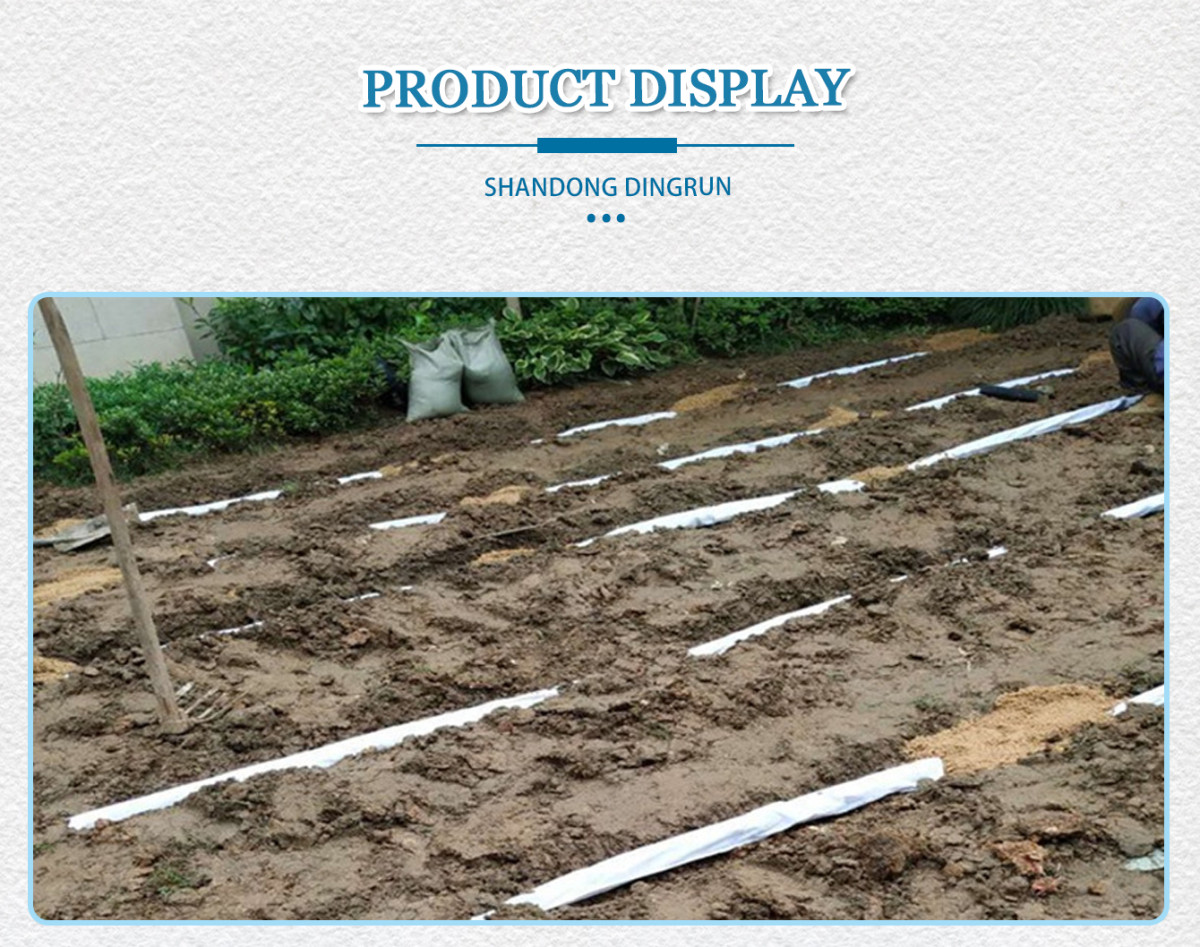

4) Drainage of green areas such as sports ground, golf course, airport, park, etc.

5) Drainage of coal yard, refuse landfill, composting yard, etc.

6) Used in underground irrigation and drainage system of agriculture and Horticulture.

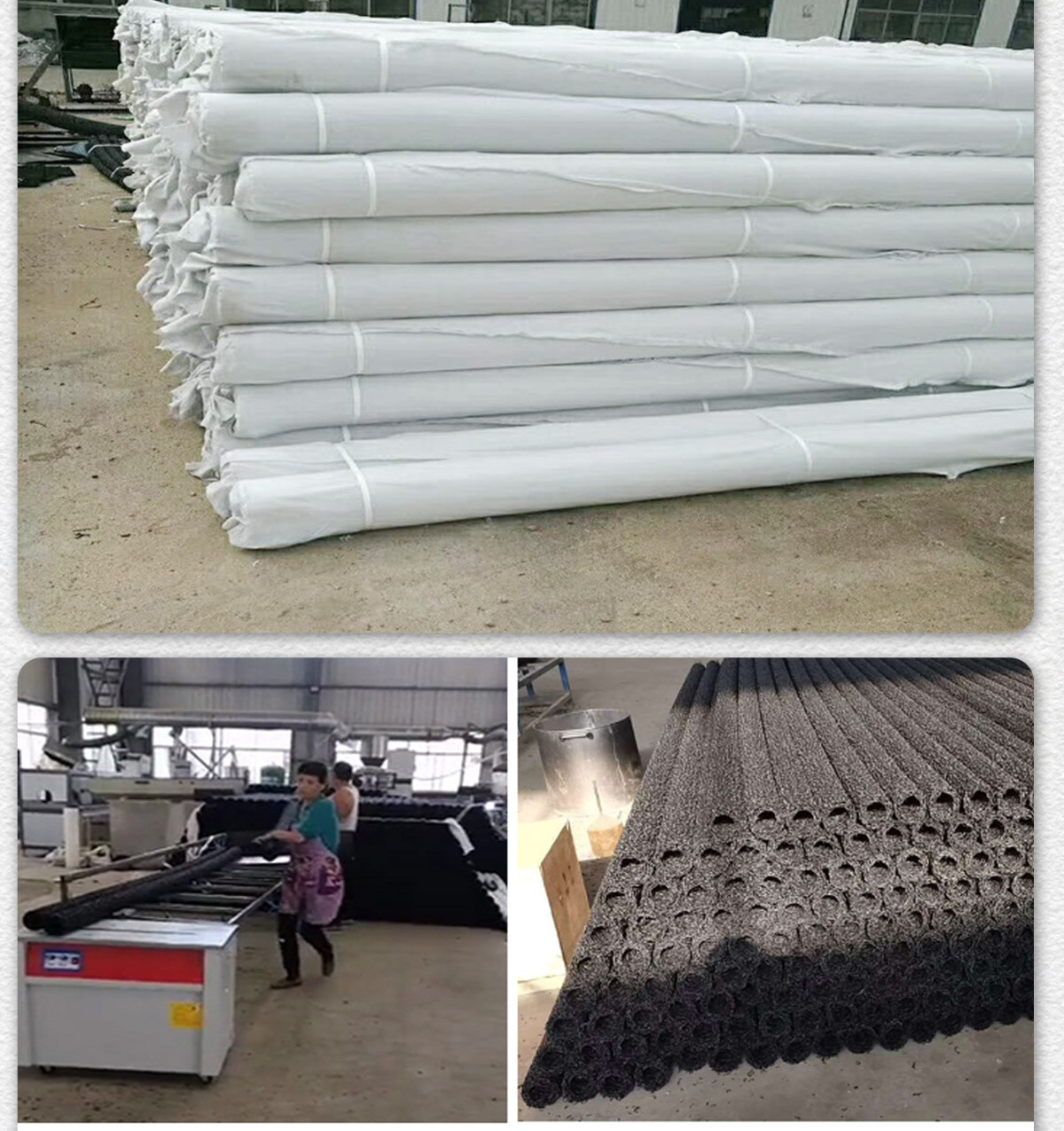

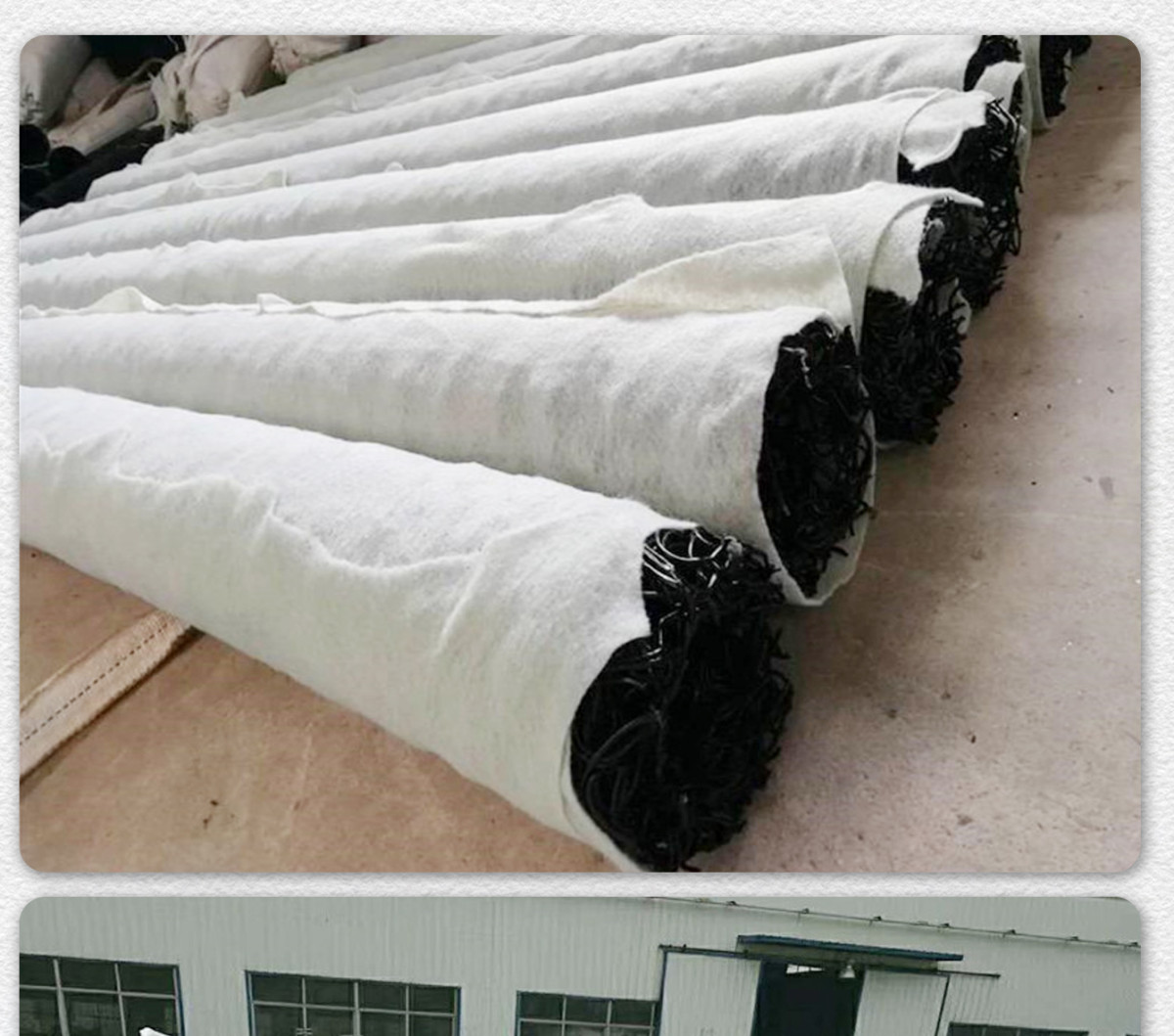

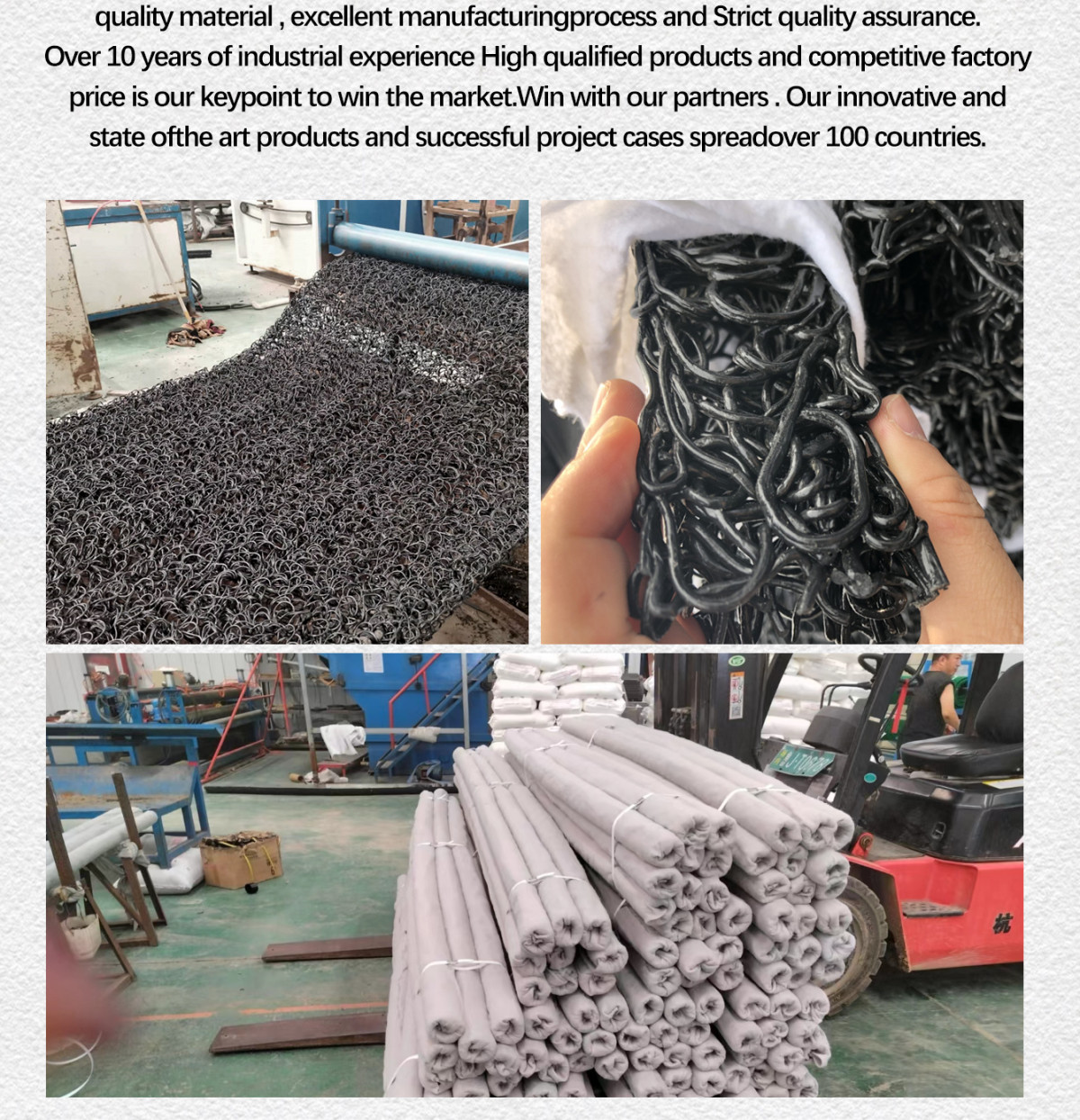

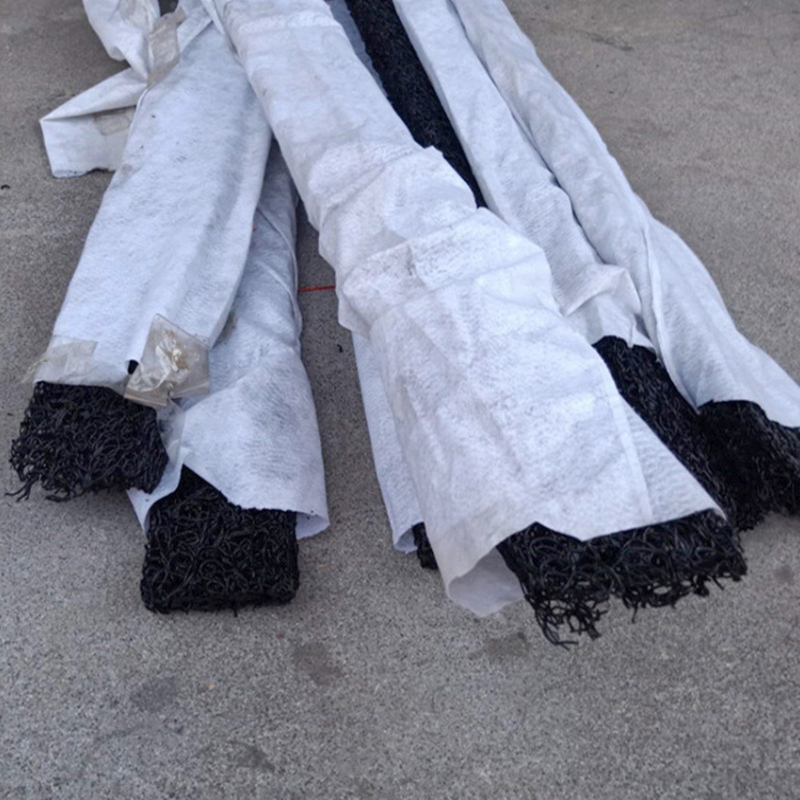

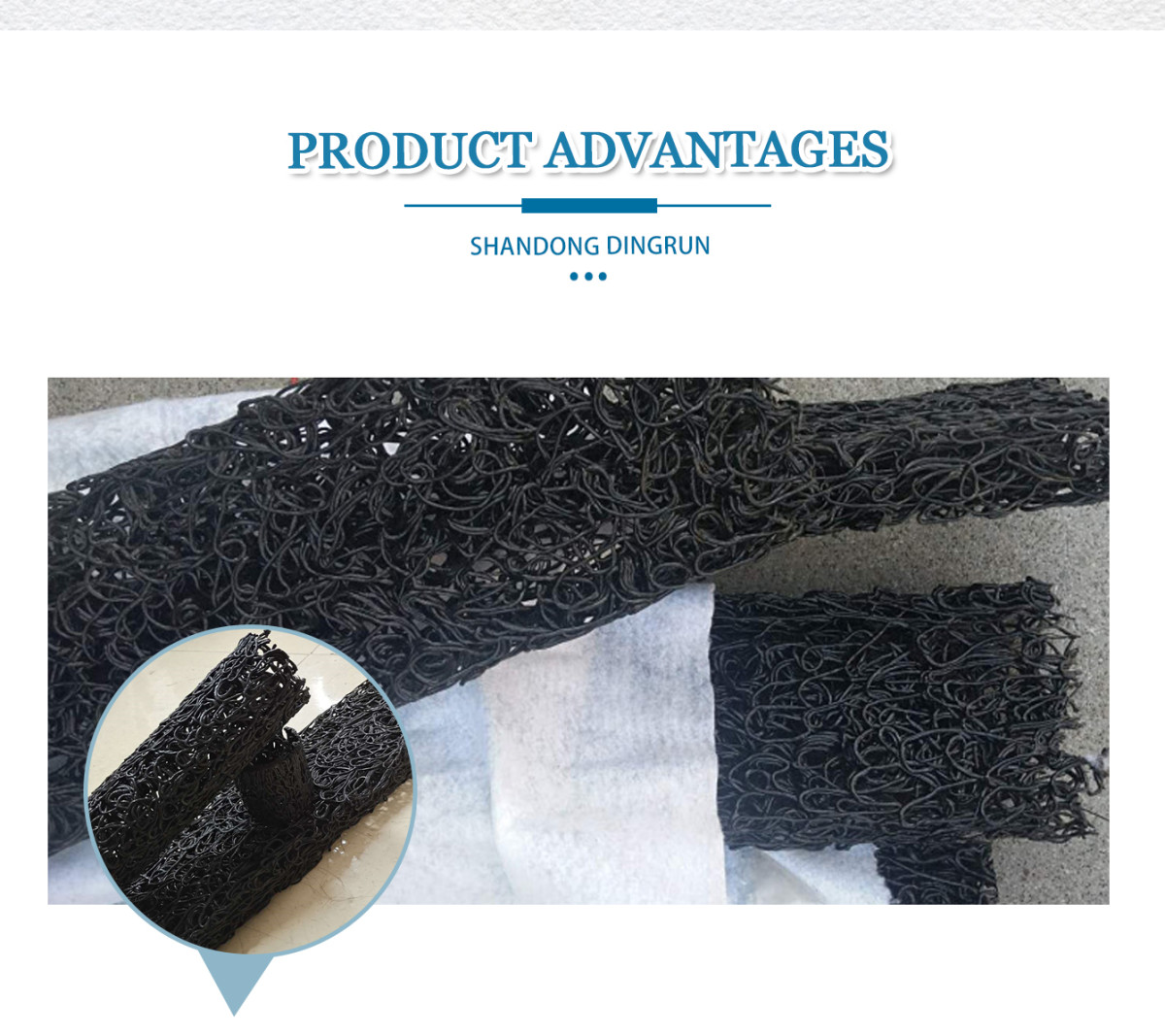

The plastic blind ditch is composed of a plastic core body wrapped with filter cloth. The plastic core is made

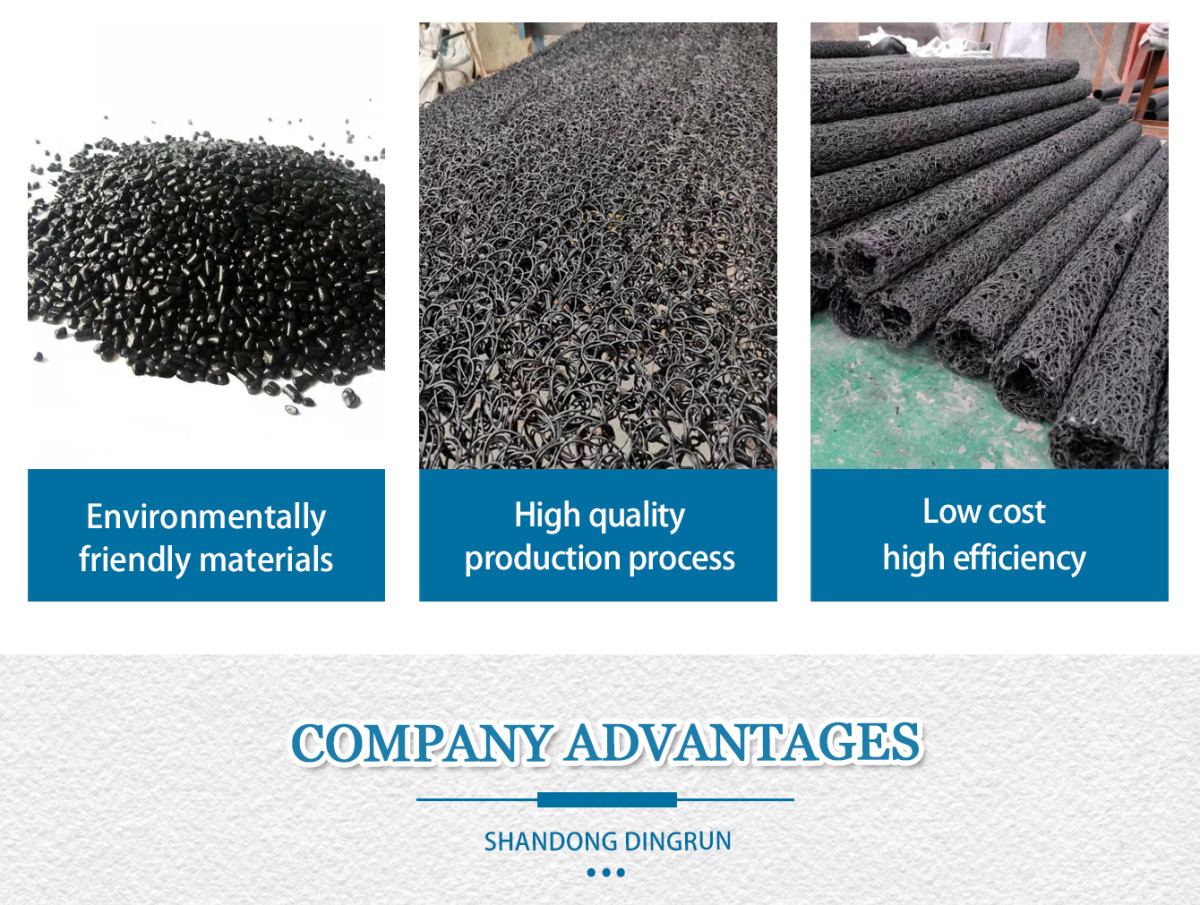

of thermoplastic synthetic resin as the main raw material. After modification, in the hot melt state, thin plastic

filaments are extruded through the nozzle, and then the extruded plastic filaments are welded at the nodes

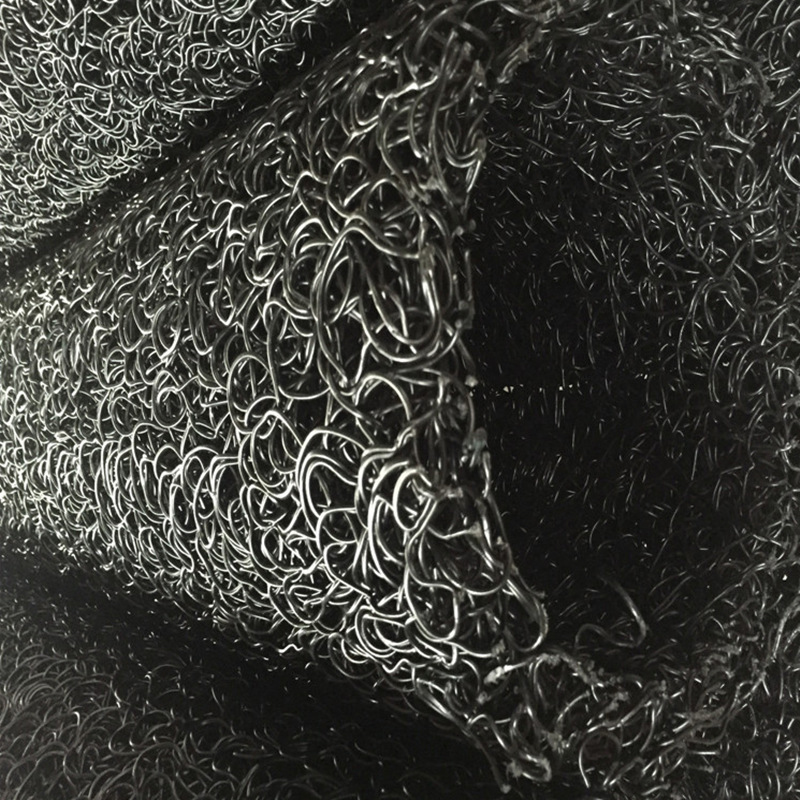

through the forming device. , Forming a three-dimensional three-dimensional network structure. The plastic

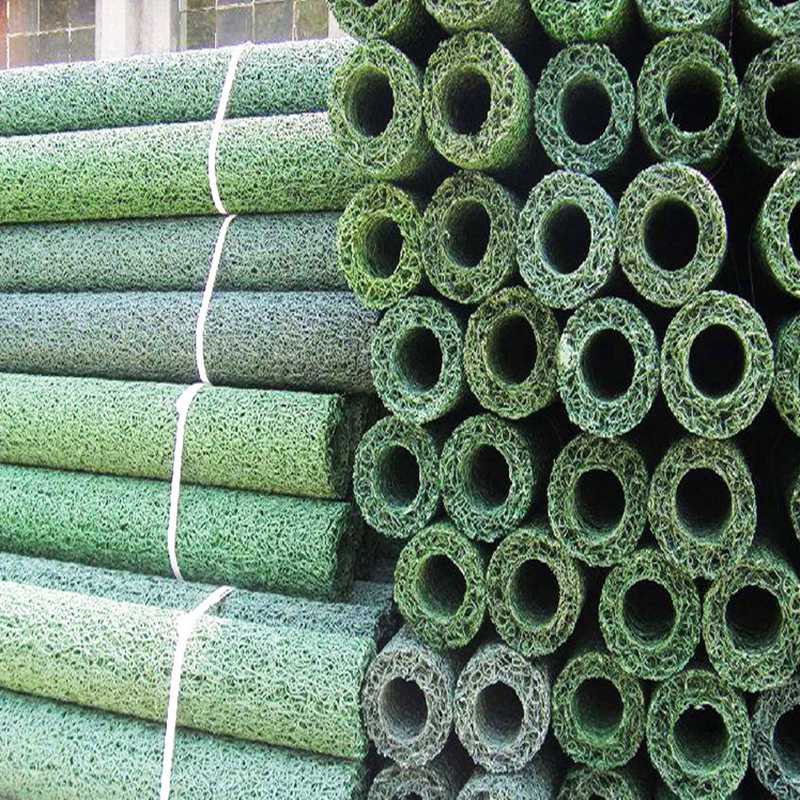

core has a variety of structural forms such as rectangle, hollow matrix, circular hollow circle and so on. This

material overcomes the shortcomings of traditional blind ditch.It has high surface opening rate, good water

collection, large porosity, good drainage, strong pressure resistance, good pressure resistance, good flexi-

bility, adapt to soil deformation, and good durability. , Light weight, convenient construction, greatly reduced

labor intensity of workers, and high construction efficiency. Therefore, it is generally welcomed by the Engi-

neering Bureau and is widely used.
