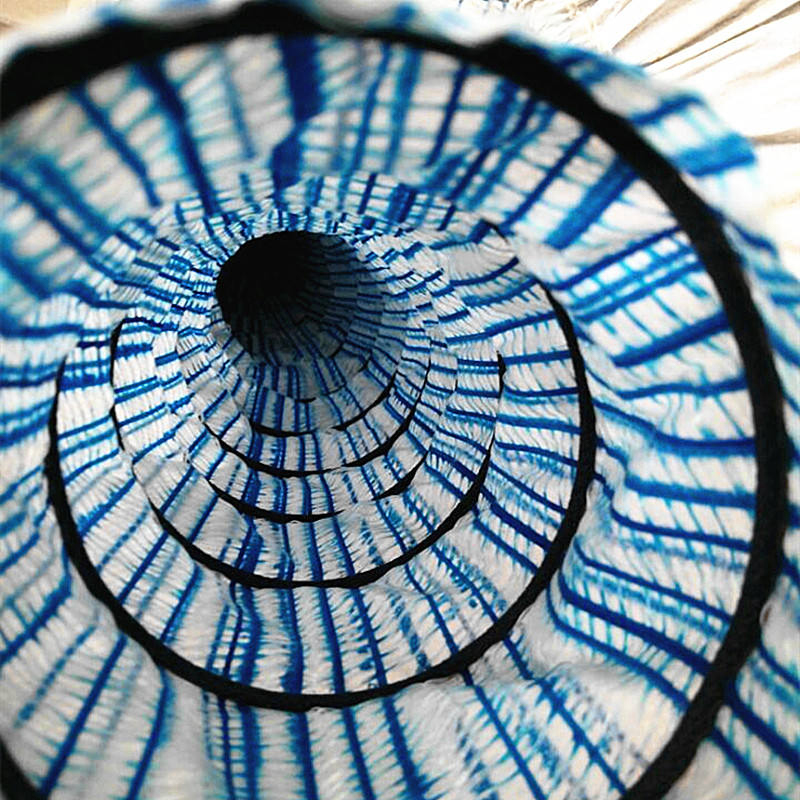

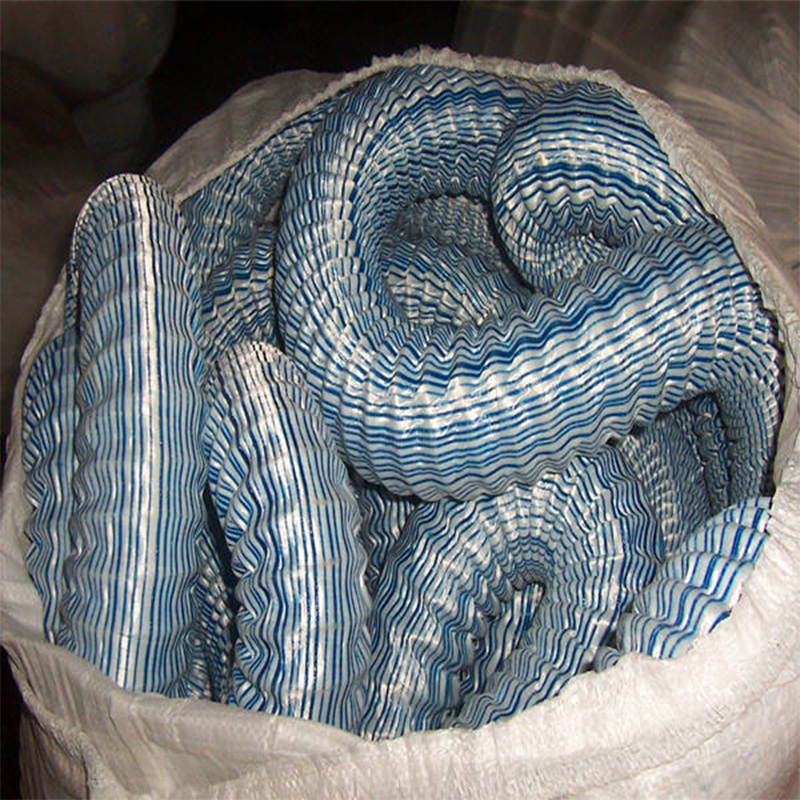

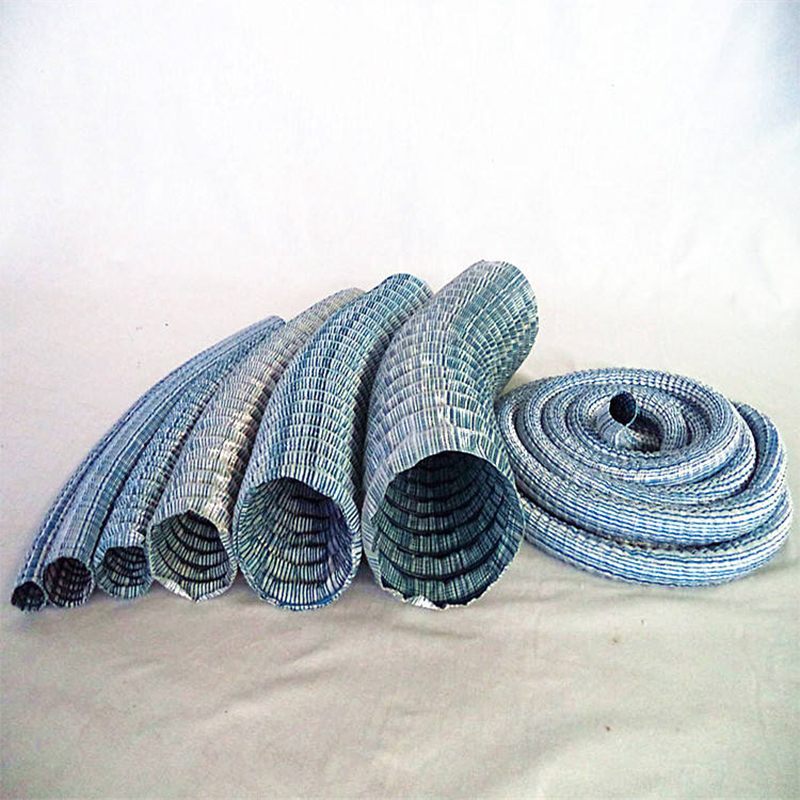

Flexible permeable pipe 80mm/100mm/150mm drainage permeable for hose Garden greening

Phone : +86 19353119093

Email : inquiry@drgeotextile.com

Whatsapp : +86 19353119093

Product Description

Place of Origin	Shandong, China
Brand Name	DingRun
Model Number	Flexible permeable pipe
Color	white blue
Material	steel wire+polyester
Wire diameter	1.6mm-5.5mm
Distance between wire	47ring/m-17ring/m

Hose Specification

Art. No.		PLD0101	PLD0102	PLD0103	PLD0104	PLD0105	PLD0106	PLD0107
Item		φ50	φ80	φ100	φ150	φ200	φ250	φ300
Wire diameter(mm)		≥1.6	≥12.0	≥2.6	≥3.5	≥4.5	≥5.0	≥5.5
Distance between wire(ring/m)		≥47	≥37	≥32	≥24	≥17	≥17	≥17
Filter cloth	MD Tensile Strength kN/5cm≥	1.0	1.0	1.0	1.0	1.0	1.0	1.0
	MD Elongation % ≥	15	15	15	15	15	15	15
	CD tensile strength kN/5cm≥	0.8	0.8	0.8	0.8	0.8	0.8	0.8
	CO Elongation % ≥	15	15	15	15	15	15	15
	Ball tensile strength kN ≥	1.4	1.4	1.4	1.4	1.4	1.4	1.4
	Filter Coefficient m/s ≥	0.1	0.1	0.1	0.1	0.1	0.1	0.1
	Effective aperture mm ≥	0.06-0.2

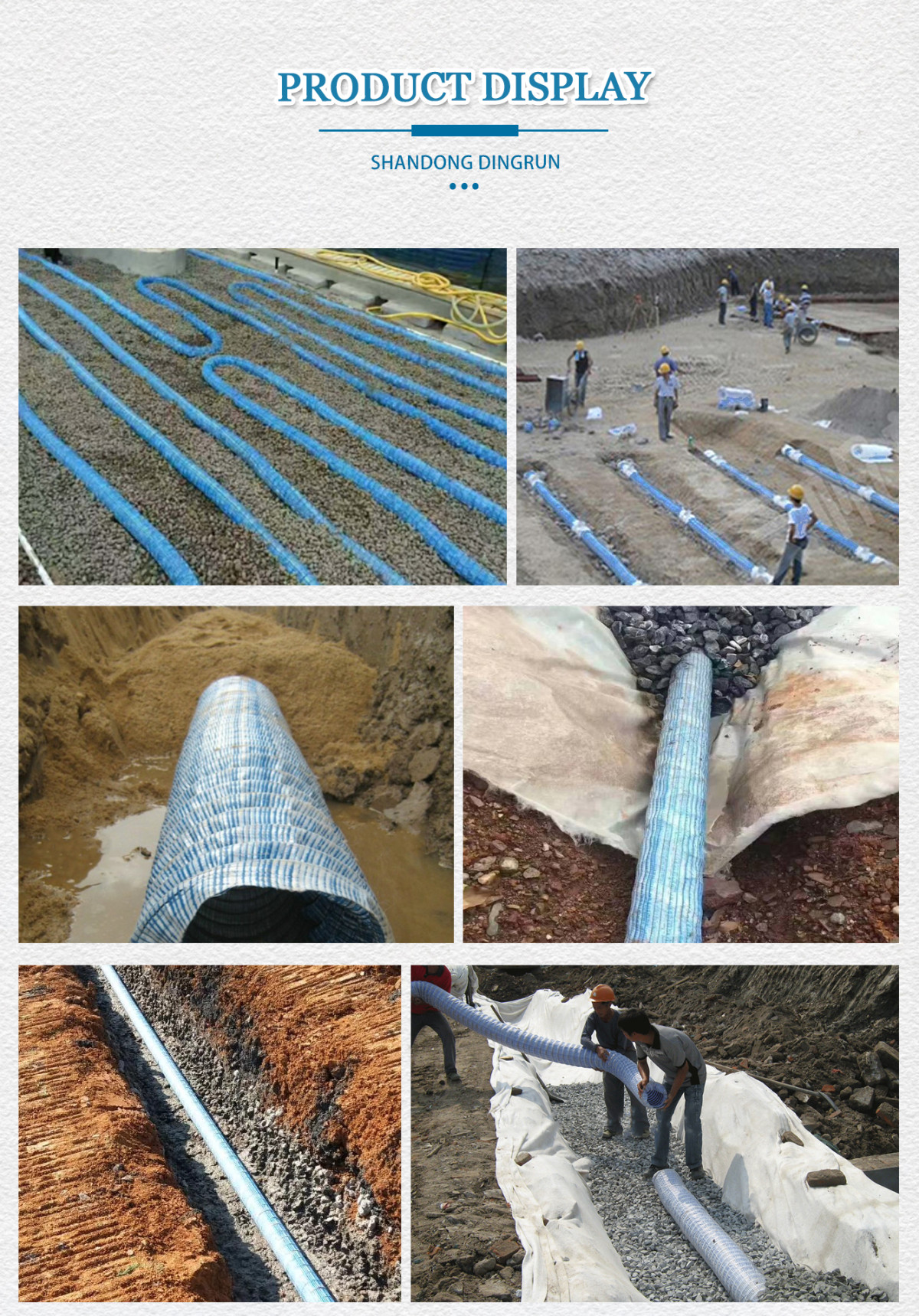

Function and purpose of soft permeable pipes:

Vertical and horizontal drainage on the back of various retaining walls; Roadbeds and shoulders of highways

and railways, and drainage of soft soil foundations; Drainage of tunnels and underpasses; Drainage of power

ash dams and water conservancy dams; Drainage and protection of vegetation in the central isolation zone of

highways; Drainage of outdoor sports venues; Horizontal drilling for drainage; Drainage and slope protection

in areas prone to collapse and sliding; Roof garden and flower bed drainage; Soil and water conservation on

mountain slopes; Underground drainage for land preparation engineering; Low lying drainage and saline alkali

land renovation system.

New TYPE of pipe with inverted filtration ( drainage) water function , it is conducive to the "capillary" phenome-

non and "siphon" principle , set water absorption , water permeability , drainage as one , with engineering desi-

gn requirements of pressure resistance , water permeability and filtration.

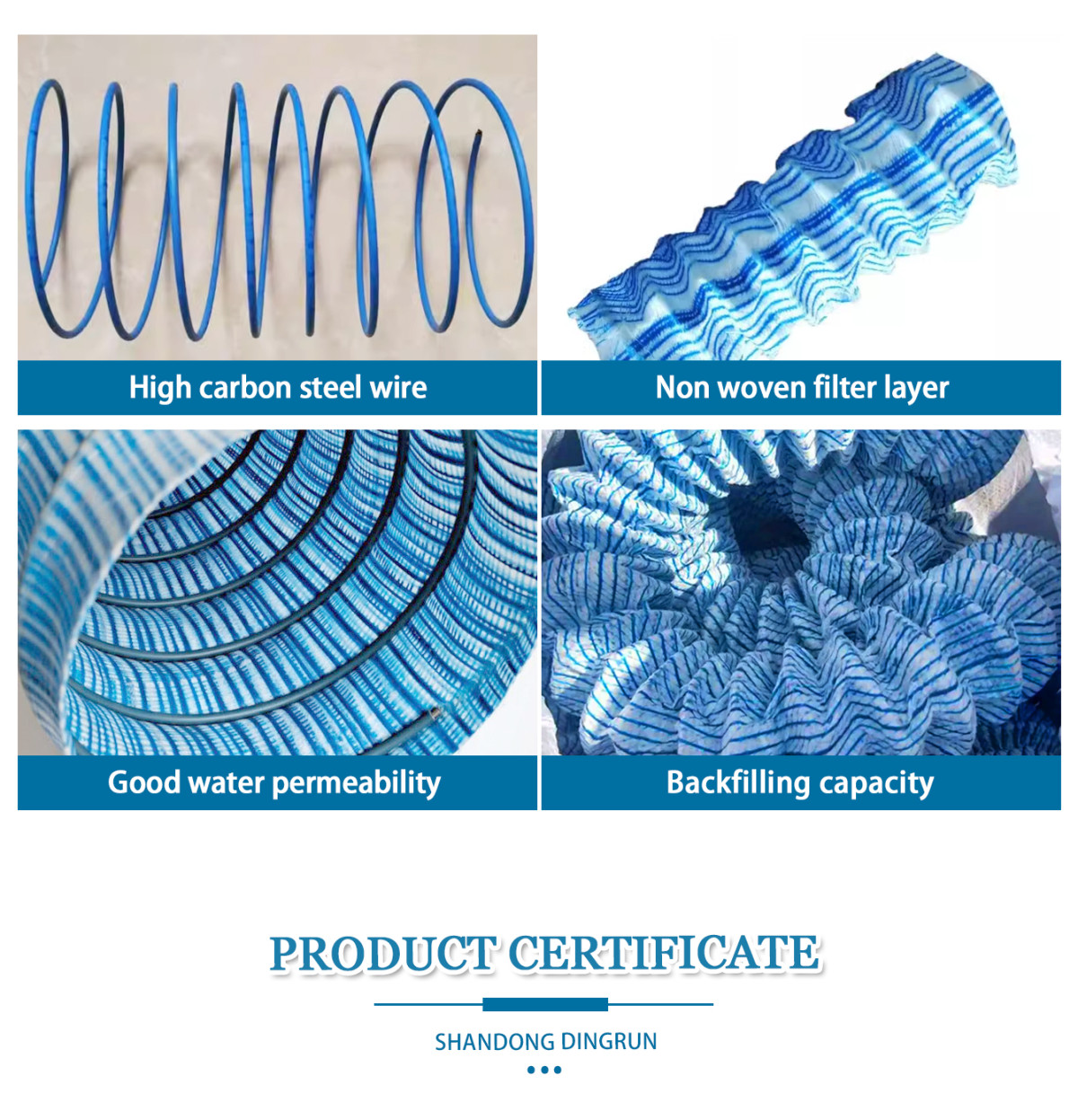

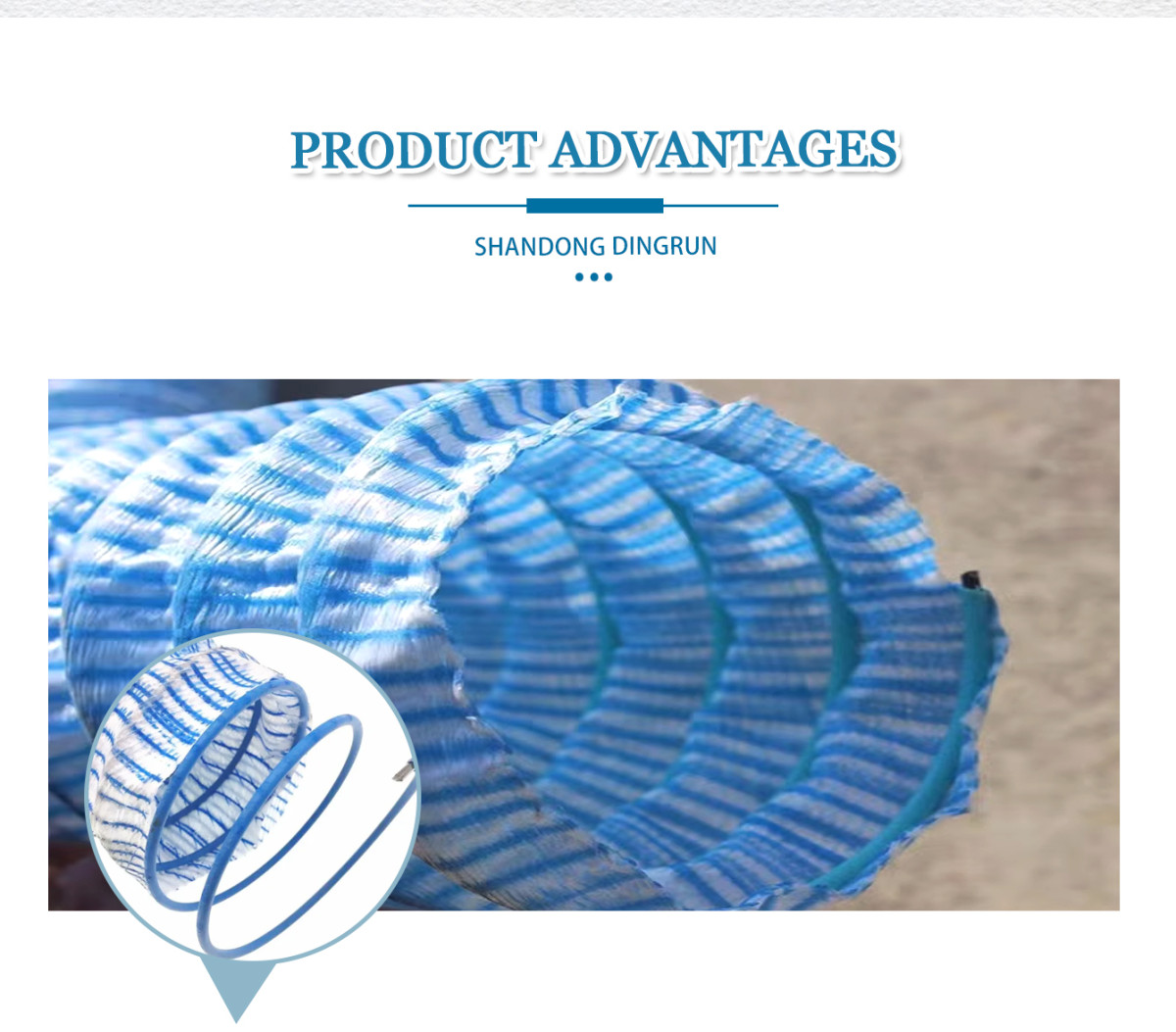

Soft pervious pipe for drainage,Its structure made of steel wire wrapt with PVC. It has the advantage of whole

filtration and draining quickly and efficiently, high permeability, large tonnage, replacing traditional PVC pipe w-

ith wholes, easys to use, excellent function.Comparing with C type of the plastic drainage board, the flexible pe-

rmeable hose can speed the consolidation and compression of the foundation and raise the deep reinforcing effect.

FAQ

Q1. Can you do OEM?

A1. Yes.of course.We can produce the products as per your request.

If you can offer samples to us,it will be more convenient.

Q2. If I want to order a small quantity goods,can you do it?

A2. If the product you need we have stock available,that would be great,you can choose the instock goods.

but if not, don’t worry, we can take your order with our other clients’ order to be produced together.But it needs to wait some time .

Q3: Can you arrange the shipment for us?

A3: Yes, Our freight forwarders are through the company tender, signed long-term agreement, Price Service is the best. we have designated sea-freight and railway freight Forwarders with decades of experiences and we can get the best price with earliest vessel and professional services.

Q4. How will you follow my order?

A4. When the goods are started to produce,we will take photos for the goods and send it to you.

If you find any production deficiencies,please contact us to correct it.

We will keep in touch with you in the whole production by e-mail or instant messaging, like Skype/Viber/WhatsApp, you can get the
