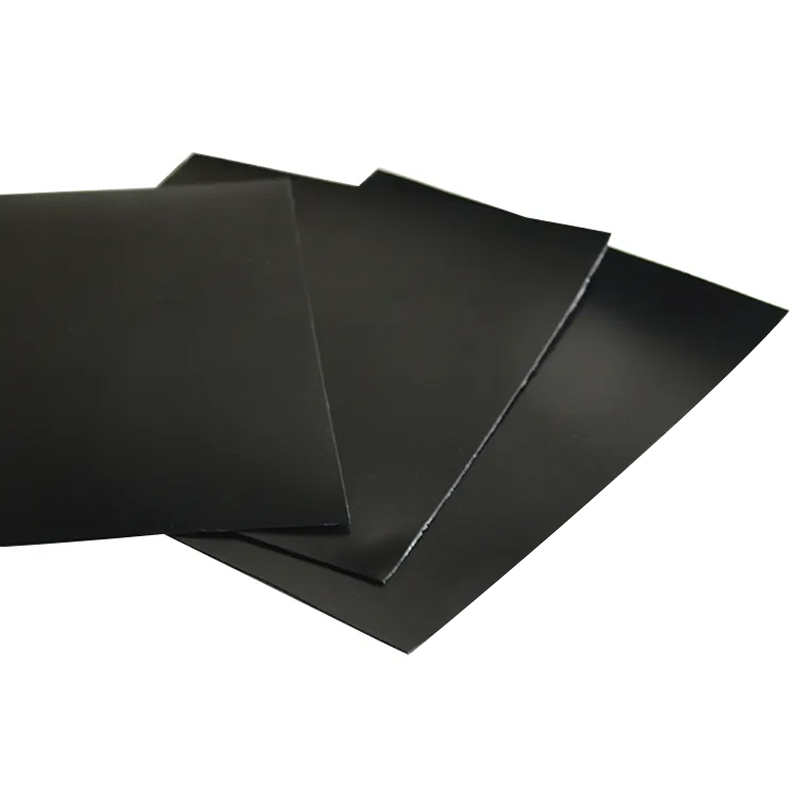

HDPE Geomembrane

Product Description

Industry-specific attributes


  Warranty

  1 Year

  After-sale Service

  Online technical support

  Project Solution Capability

  total solution for projects

  Application

  Outdoor

  Design Style

  Industrial


Other attributes


  Place of Ongin

  China

  Type

  Geomembrane

  Brand Name

  Dingrun

  Product Name

  Smooth geomembran

  Material

  HDPE LDPE LLDPE

  Color

  Black White Green Blue

  Keyword

  Geomembranes

  Length

  50-100m, or customization

  Width

  2m-8m

  Thicknes

  0 . 2mm-3mm


PRODUCT PARAMENTERS/geomembrane data


Item

Index

The thickness(mm)

0.5

0.751.001.251.52.002.25
3.00

Tensile yield strength (longitudinal and transverse)N/mm

≧8

≧11≧15≧18≧22≧29≧37≧44

Tensile fracture strength (longitudinal and transverse)N/mm

≧13≧20≧27≧33≧40≧53≧67≧80

Yield elongation (longitudinal and transverse)%

≧12

Elongation at break (longitudinal and transverse)%

≧700

Right-angle tearing load (longitudinal and transverse)N

≧58

≧93

≧125

≧160

≧190

≧250

≧315

≧375

Puncture resistance N

≧160

≧240

≧320

≧400

≧480

≧640

≧800

≧960

Stress cracking under tensile load (dead-load tensile method with notch)h

≧300

Carbon black content%

2.0~3.0

Oxidation induction time(OIT)


Induction time of oxidation at atmospheric pressure≧100

Induction time of high pressure oxidation≧400

85℃ thermal aging (OIT retention rate at atmospheric pressure after 90 days)

≧55

Uv resistance (OIT retention rate after 1600h UV irradiation)

≧50


Advantages of HDPE Smooth Geomembrane


HDPE smooth geomembrane has anti-aging, UV resistance, high and low temperature resistance, and can be

exposed for a long time.

HDPE geomembrane is a good flexible waterproof and anti-seepage material, with a water vapor permeability coefficient

of 1.0 × 10-13.

Good chemical stability, it has resistance to chemical solutions such as oil, tar, acid, alkali, salt, etc., with small

thermal deformation and good anti-corrosion effect, making HDPE geomembrane suitable for use in any harsh

environment.

HDPE geomembrane has unique tear resistance, puncture resistance, low brittleness, plant root resistance, and

high elongation, which can meet high project requirements.

HDPE geomembrane has short construction period, convenient transportation, low cost, no pollution, and strong

economic benefits.


Aquaculture Industry

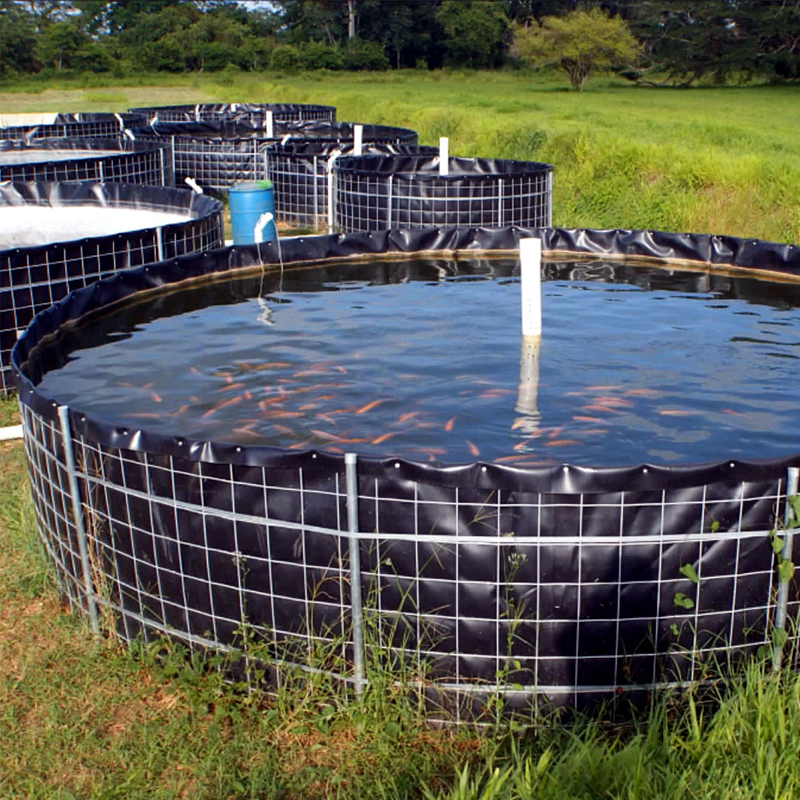

1Aquaculture

For example , industrialized aqua -culture ponds , fish ponds , shrimppons lining , sea cucumber circleprotection , etc .

2Water Conservancy

For example , seepage preventionleakage stoppage , and reinforcement of rivers . lakes , reservoirs and slope

protection , etc

3Municipal Engineering

For example , tunnel , subway , underground works of buildings and roof cisterns , impervious roof garden , lining

of sewage pipes,ete

4Petrifaction

For example , anti seepage of oil storage tanks in chemicalplants, refineries and gas stations , lining of chemical

reaction tank and sedimentation tank , secondary lining , etc.




HDPE Geomembrane Pond Liner WaterproofImpermeable Smooth Textur 0 . 5mm 0 . 75mm 1 . 0mm 1 . 5mm

2 . 0mm White Black Smooth TeturedHDPE Waterproof Geomembrane for Dam Liner fish pond water reservoir.


HDPE EVA EPDM PVC Waterproof Geomembrane Plastic Pond Liner for Fish Pond Landfill Dam Mining Lagoon

Factory direct sales price discount , high-quality EVA tunnel geotextile film.


Composite geomembrane is compounded with geotextiles and geomembrane impermeable material , it is mainly

used for seepage control HDPE Composite geomembrane and nonwoven geotextile for landfill.











FAQ

Q1. Can you do OEM?

A1. Yes.of course.We can produce the products as per your request.

If you can offer samples to us,it will be more convenient.



Q2. If I want to order a small quantity goods,can you do it?

A2. If the product you need we have stock available,that would be great,you can choose the instock goods.

but if not, don’t worry, we can take your order with our other clients’ order to be produced together.But it needs to wait some time .



Q3: Can you arrange the shipment for us?

A3: Yes, Our freight forwarders are through the company tender, signed long-term agreement, Price Service is the best. we have designated sea-freight and railway freight Forwarders with decades of experiences and we can get the best price with earliest vessel and professional services.



Q4. How will you follow my order?

A4. When the goods are started to produce,we will take photos for the goods and send it to you.

If you find any production deficiencies,please contact us to correct it.

We will keep in touch with you in the whole production by e-mail or instant messaging, like Skype/Viber/WhatsApp, you can get the

latest news about your order.

After the goods are finish,we will take photos for the goods and packing to you before shipping.



Q5. What is your exporting countries?

A5. We have good sales performance and win good international reputation in more than 30 Countries and

regions,such as Japan, America, Australia,Russia, Canada,Middle East and so on.

Especially in the Middle East and Australia market.
